25Mn Honed tubes, also known as honed pipes or cylinder tubes, represent the gold standard in precision-engineered components for the hydraulic and pneumatic industry. Manufactured from high-quality 25Mn (25 Manganese) steel alloy and finished through a precise honing process, these tubes form the critical barrel component of hydraulic cylinders. Their superior mechanical properties, exceptional surface finish, and excellent wear resistance make them indispensable in applications demanding reliability, durability, and peak performance under high pressure and strenuous conditions.

Advantage

The base material, 25Mn carbon steel, is strategically chosen for its outstanding balance of strength, toughness, and machinability. The key benefits of this alloy include:

• High Strength and Toughness: The manganese content enhances the hardenability and tensile strength of the steel, allowing cylinders constructed from 25Mn tubes to withstand extreme internal pressures and heavy shock loads without deformation or failure.
• Excellent Wear Resistance: The inherent properties of 25Mn steel, combined with the work-hardening effect achieved during the honing process, provide a exceptionally hard and wear-resistant internal surface. This significantly reduces friction between the tube and the piston seals, extending the service life of both the cylinder barrel and the sealing components.
• Good Machinability and Weldability: 25Mn steel is comparatively easier to machine and weld than higher alloy steels, facilitating more straightforward manufacturing and repair processes while maintaining structural integrity.

The Honing Process:

The distinguishing feature of these tubes is the honing process, a cold-working operation that removes a minimal stock of material to achieve final dimensions and a superior surface finish. This process involves passing abrasive honing stones with a reciprocating and rotating motion through the tube's bore. The benefits of honing are multifaceted:

• Superior Surface Finish: Honing produces a characteristic cross-hatch surface pattern. This pattern is ideal for retaining lubrication oil, ensuring consistent and effective sealing, and promoting the smooth, friction-free movement of the piston assembly.
• Precise Geometrical Accuracy: The process expertly corrects any minor deviations in straightness, roundness, and cylindricity that may occur from previous drawing or boring operations. This results in a bore that is exceptionally straight and geometrically perfect, which is critical for preventing premature seal wear and piston rod drift.
• Improved Fatigue Strength: The honing process compresses the surface layer of the metal, inducing beneficial compressive stresses that enhance the tube's resistance to fatigue cracking.

Key Specifications and Performance Characteristics

• Material Grade: 25Mn (equivalent to ASTM A513, EN 10216-2)
• Surface Finish: Extremely smooth, with a typical roughness average (Ra) value between 0.2 µm to 0.4 µm (8-16 µin), achievable through precise honing.
• Hardness: Offers a robust hardness profile, generally in the range of 180-240 HB.
• Dimensional Tolerance: Held to very tight internal diameter (ID) tolerances (e.g., H9 or better) and precise wall thickness tolerances.
• Straightness: High degree of straightness per meter length is guaranteed.

Applications

• Construction Equipment: Hydraulic cylinders for excavators, bulldozers, loaders, and cranes.
• Agricultural Machinery: Cylinders in tractors, combines, and balers.
• Industrial Machinery: Presses, injection molding machines, and machine tools.
• Material Handling: Forklifts, dump trucks, and logging equipment.
• Automotive Sector: Lifting jacks and suspension systems.

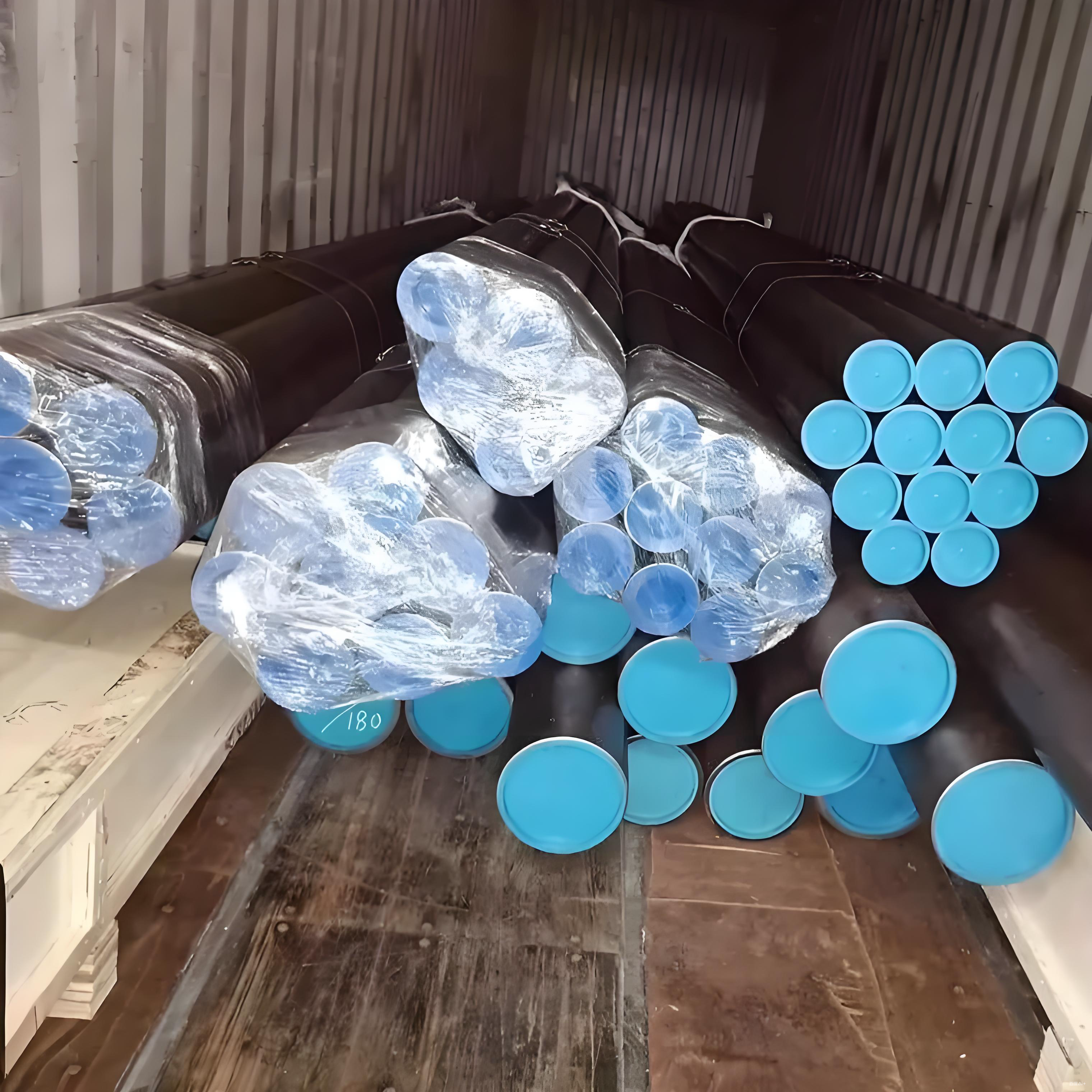

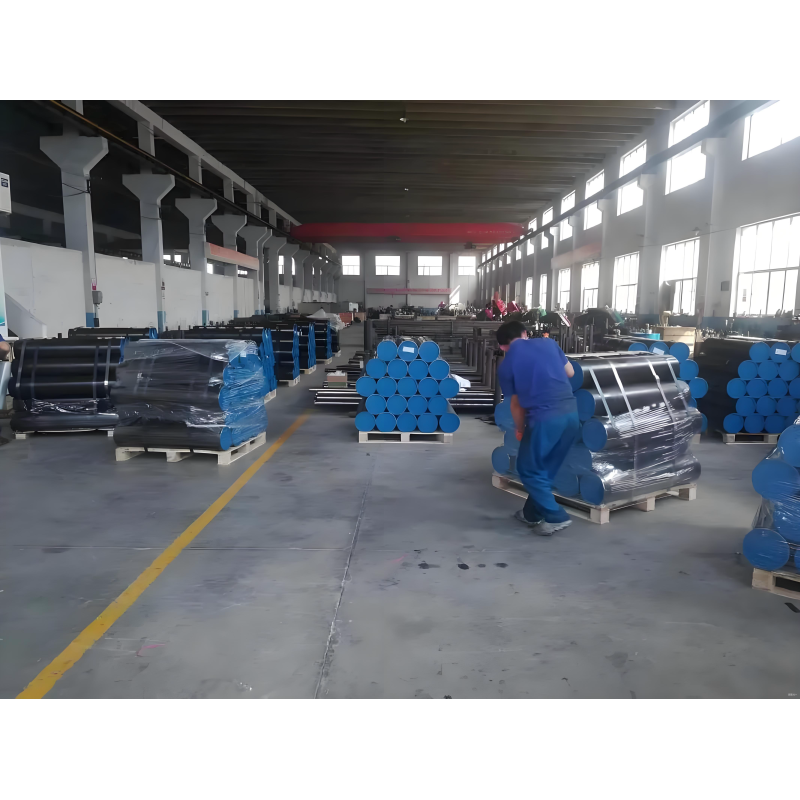

25mn Precision Honed Tube Images
